How to test a temperature sensor

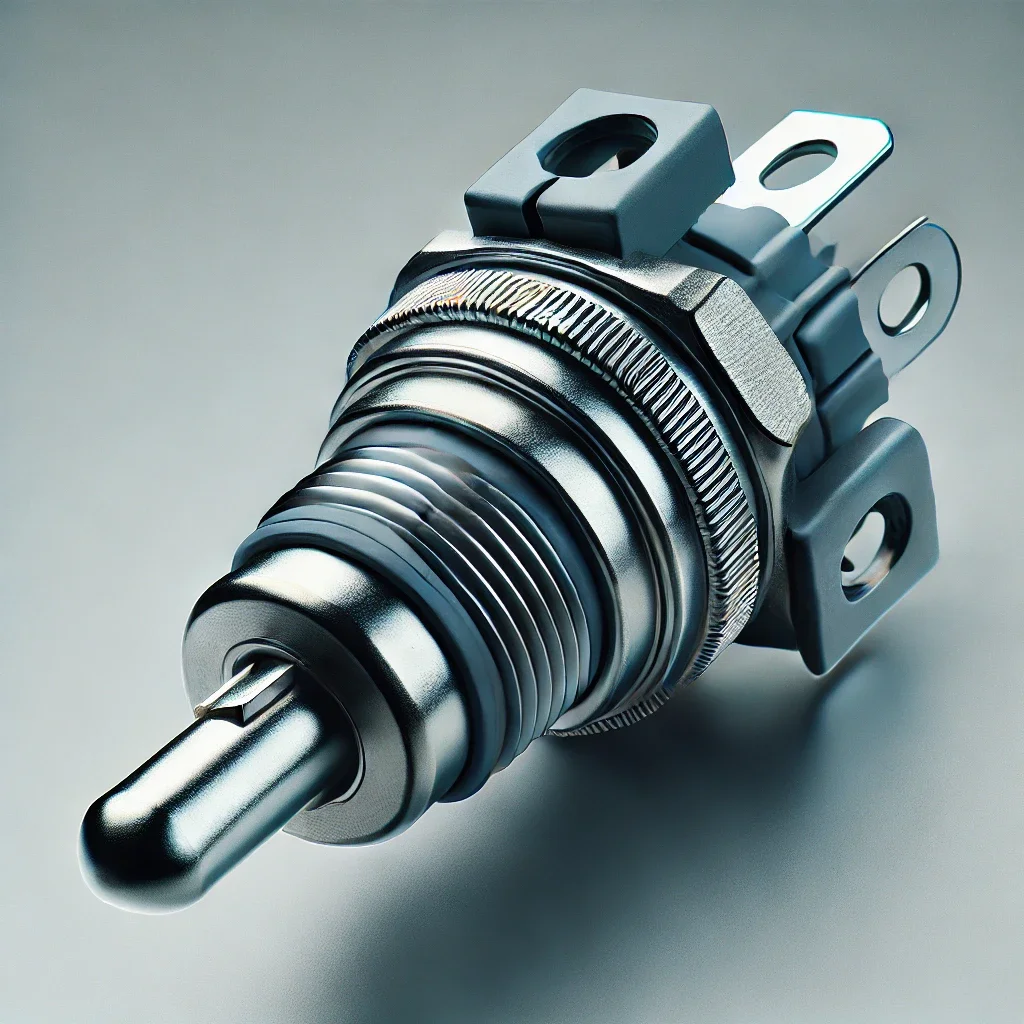

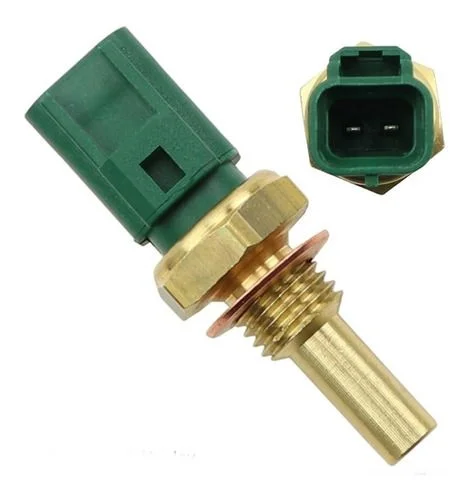

A temperature sensor is a device that measures the ambient temperature and converts that information into a signal that can be interpreted by other systems. These sensors are essential in applications such as engine regulation in a car. Detecting issues in these sensors in time can prevent more severe and costly failures.

01Necessary Tools to Test a Temperature Sensor

To test a temperature sensor, you will need:

• Multimeter: A fundamental tool for measuring the sensor’s resistance or voltage.
• Manufacturer’s Manual: Provides specific information on expected values and sensor characteristics.
• Basic Tools: Such as screwdrivers, pliers, and gloves for safe handling.

02Steps to Test a Temperature Sensor with a Multimeter

Equipment Preparation

1. Disconnect the sensor from the system to prevent circuit damage.
2. Set the multimeter to the appropriate scale (ohms for resistance, volts for voltage).

Multimeter Connection

1. Connect the multimeter probes to the sensor terminals.
2. Observe the multimeter reading and compare it with the values specified in the manufacturer’s manual.

Interpreting the Results

1. Correct Reading: If the values are within the specified range, the sensor is working properly.
2. Incorrect Reading: If the values are abnormally high or low, the sensor may be faulty and require replacement.

Symptoms of a Faulty Temperature Sensor

A defective temperature sensor can show several symptoms, such as:

• Erratic or incorrect readings on the control panel.
• Engine starting failure or irregular operation.
• Increased fuel consumption due to an incorrect air-fuel mixture.

Testing a temperature sensor is a simple but crucial process for maintaining critical systems. By using a multimeter and following the proper steps, you can effectively diagnose issues and take preventive measures to avoid major damage.
